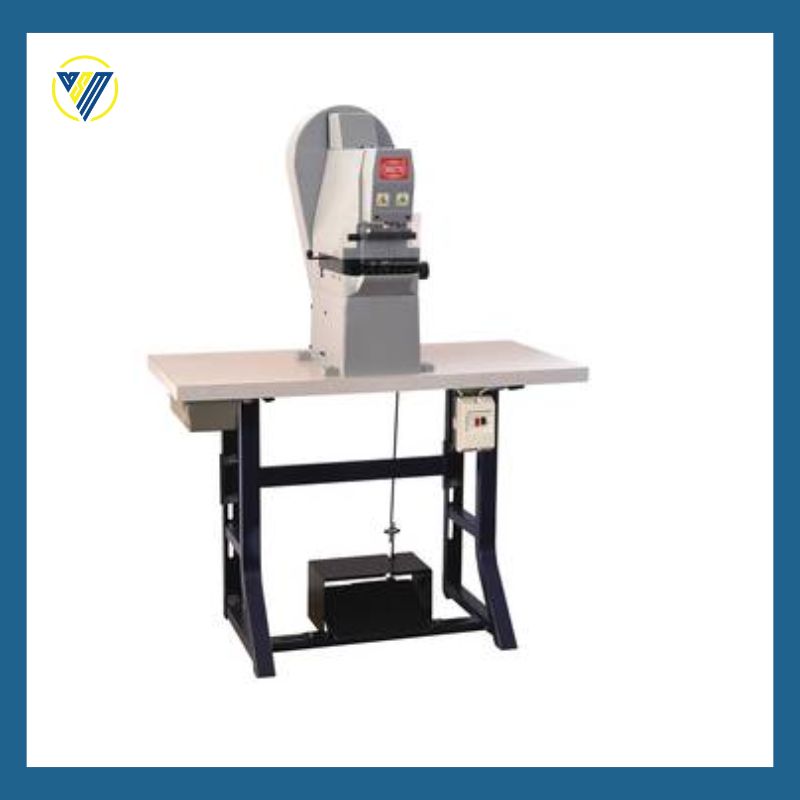

Perforating Machine
Machine to make holes for shoe laces. It is possible to make the holes on both sides of uppers simultaneously and to select, by moving the pressing truck, the quantity of the holes to be made up to a maximum of 7 holes each side. It is possible to adjust the alignment of the holes by means of 2 levers on both sides of the machine head and by means of a knob placed on the right side of the machine. It is possible to adjust the distance between the holes from a minimum of abt 10 mm and a maximum of abt 19 mm. from a centre to another. The set of 7 perforators composed by punches and dies, can be selected among 10 different sizes from 1.8 mm and 4.8 mm.
Technical Data
Adjustable perforating line
Quantity of the holes from 1 to 7 holes
Power absorbed max. 0,4 kW
Power supply: three-phase 400V 50/60 Hz
Machine dimensions cm. 110 x 55 x 150 h.
Machine weight kg 130
