Is a machine to press the seams and glue them simultaneously. The machine is equipped with amovable arm with wheel, with a feeding roll and with a support adjustable in height and in depth where 2 glue dispensers are fixed.

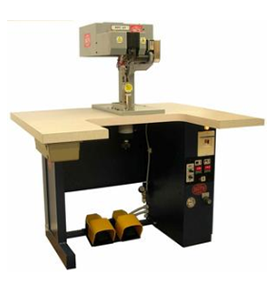

Machine to press the seams and glue them simultaneously
Is a machine to press the seams and glue them simultaneously. The machine is equipped with amovable arm with wheel, with a feeding roll and with a support adjustable in height and in depth where 2 glue dispensers are fixed.
The machine is equipped with the following controls and adjustments:
• Main switch;
• Dispenser temperature control;
• Pot temperature control;
• Feed speed control;
• Glue delivery speed control;
• Control of the pneumatic pressure of the arm rising cylinder;
• Feeding pedal and arm rising
• Reset pedal;
• Control of the arm rising height;
• Control of the air stream for the arm rising;
• Control of the general pneumatic pressure.
Technical data
N° 2 brushless motors driving independently feed and glue delivery.
Pot for thermocement glue.
N° 2 glue dispensers with adjustable closing according to the leather thickness.
Display of the distance between the feeling rollers.
Adjustable feed speed from 2,5 to 12 mt/min
Glue suction preventing the glue from falling down on the work-piece and consequently stain it.
Glue filling at the job beginning so that to start with the correct glue quantity.
