M11 GE

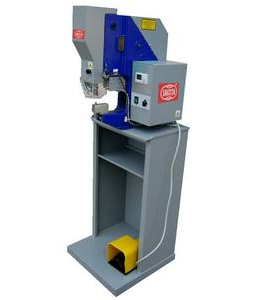

Self-Piercing eyeletting machine, complete with table, motor and one set of dies. For eyelets with shank diameter between 3.5 and 10mm.
The machine is provided with a piercing device by cam with a precise and easy adjusting, to assure a good cutting on material such leather, skin, plastic, fabric, cardboard.
-
Mô tả
-
Hướng dẫn mua hàng
The machine is provided with a piercing device by cam with a precise and easy adjusting, to assure a good cutting on material such leather, skin, plastic, fabric, cardboard.The feeder is easily interchangeable and every kind of eyelet can be applied with only one machine. All the functions are under the control of a microprocessor, a partial counter with reset and a total counter are available. Among the options a slow motion for TEST and a MULTIPLE SETTING to repeat a programmable sequqence of a certain number of eyelets and the time betweeen the setting.
This machine can be trasformed as riveting machine or equiped with a lower feeder for washer.
Technical Data
● Throat depth 160 mm.
● Absorbed power max 0,4 kW
● Power supply single-phase 230 Volt 50/60 Hz
● Machine dimensions cm. 45 x 50 x 140 h.
● Machine weight Kg. 70
