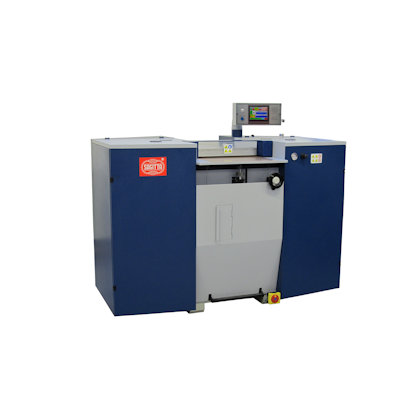

The SPL 55 PLUS PLC is a programmable electronic splitter. The machine is controlled by a PLC with a Touch Screen display that displays the set data and provides information on the operation of the machine, also making use of particular acoustic signals.
Splitting Machine
Machine designed for industry 4.0
The SPL 55 PLUS PLC is a programmable electronic splitter. The machine is controlled by a PLC with a Touch Screen display that displays the set data and provides information on the operation of the machine, also making use of particular acoustic signals. The main sectors of use are in the leather and shoe manufacturing, furniture, clothing, felt, and all materials with elasticity and adequate softness. The positioning and recovery of blade consumption is automatic. The adjustment of the blade inside the plate takes place automatically without any adjustment. Standard or long-lasting wheels can be used for sharpening, which allow constant maintenance of the sharpening angle. The electronic display shows the cutting thickness that is obtained, the working speed, the conditions of the blade, the number of pieces machined, etc.
The PLC is equipped with diagnostics in order to check the correct functioning of the machine and to report any anomalies. The machine is also equipped with a partial splitting device that allows a millimetric adjustment of the incision (particularly useful in the processing of footwear and leather goods). The suction of waste and sharpening residues takes place with 2 independent aspirators, waste and sharpening residues are collected in 2 completely separate containers. The machine is equipped with a device for the rapid adjustment of the working pressure.
Technical Data
● Programmable PLC
● Max. Splitting thickness 8 mm.
● Min. Splitting thickness with the bar 0,1 mm.
● Min. Splitting thickness with the roller 0,5 mm.
● Computerized Control Panel
● Self-acting knife feed
● Self-adjusting knife guide plate
● Multipurpose sharpening pressure device
● Standard grindstones
● Adjustable sharpening pressure device
● Adjustable feeding speed 4 to 25 mt./min.
● Knife tension indicator
● Knife lubrication and cleaning device
● Partial splitting device
● Pre-opening table device
● Micrometric lower roller pressure control
● Upper feeding roller
● Lower feeding roller made of special steel
● High precision and long life knife guide
● Chamfer symmetry and position control device
● Full up wastes exhauster sensor
● Wastes exhauster
● Grindstones exhauster
● Absorbed power max. 3 kW
● Power supply three-phase 400 Volt 50/60 Hz
Optionals
● Rubber lower roller
● Borazon grindstones
● Table stop device
● Special tooling to skive belts and wallets
● Machine dimensions cm. 170 x 100 x 130 h.
● Machine weight Kg. 855
