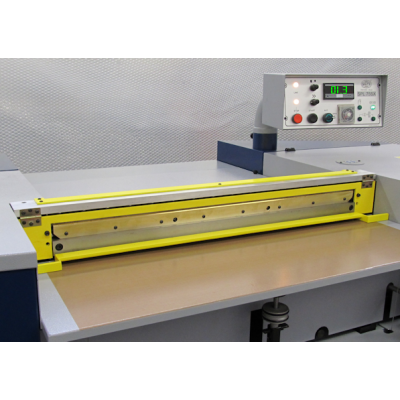

SPL 75 SX
Electronic Splitting Machine with high technology is a necessary and convenient machine in production, especially in the shoe and leather industry.
-
Mô tả
-
Hướng dẫn mua hàng
Electronic Splitting Machine
Technical Data
● Working width mm. 750
● Max Splitting thickness 8 mm.
● Min. Splitting thickness with the bar 0,1 mm.
● Min. Splitting thickness with the roller 0,5 mm.
● Control Panel with thickness digital indicator
● Self-acting knife feed
● Self-adjusting knife guide plate
● Multipurpose sharpening device
● Adjustable sharpening pressure device
● Adjustable feeding speed 4 to 25 mt./ min.
● Knife tension indicator
● Knife lubrication and cleaning device
● Partial splitting device
● Pre-opening table device
● Reversible upper roller / bar
● Micrometric lower roller pressure control
● Upper Feeding roller
● Lower feeding roller made of special steel
● High precision and log life knife guide
● Chamfer symmetry and position control device
● Full up wastes exhauster sebsir
● Wastes exhauster
● Grindstones exhauster
● Absorbed power max. 4 kW
● Power supply three-phase 400 Volt 50/60 Hz
Optionals
● Borazon grindstones
● Rubber lower roller
● Special tooling to skive belts and wallets
● Table stop device
● Machine dimensions cm. 190 x 100 x 130 h.
● Machine weight Kg. 910
